GHD-30V Geared Head Drill - QLD Schools / TAFE

31.5mm Drilling Capacity with Automatic Feed & Tapping

QLD Contract Item No. 2.3

K8701 1 of 29

3 Speed Gearbox 2 of 29

Front Head View 3 of 29

Right Head View 4 of 29

Electronic Feed Engagement 5 of 29

Automatic Feed Range 6 of 29

Drill Depth Stop Setting 7 of 29

Digital Readout Depth Gauge 8 of 29

16mm Keyless Drill Chuck 9 of 29

Control Panel with Variable Spindle Speed Control 10 of 29

Swivel Drill Chuck Guard 11 of 29

Drill Ejecter 12 of 29

Work Light 13 of 29

T Slotted Work Table 14 of 29

Rack and Pinion Wind Up Table 15 of 29

Square Work Table Tilts and Rotates 16 of 29

Coolant Hose 17 of 29

Drill Chuck and Quill 18 of 29

Coolant Pump 19 of 29

T Slot Base 20 of 29

Left View 21 of 29

1MT Sleeve D420 22 of 29

2MT Sleeve D422 23 of 29

x JT3 Drill Chuck Arbor D443A 24 of 29

Keyless Drill Chuck C294 25 of 29

Precision Drill Vice V143 26 of 29

x 14mm Tee Nuts C086 27 of 29

N086 M 12 Flanged Nuts 28 of 29

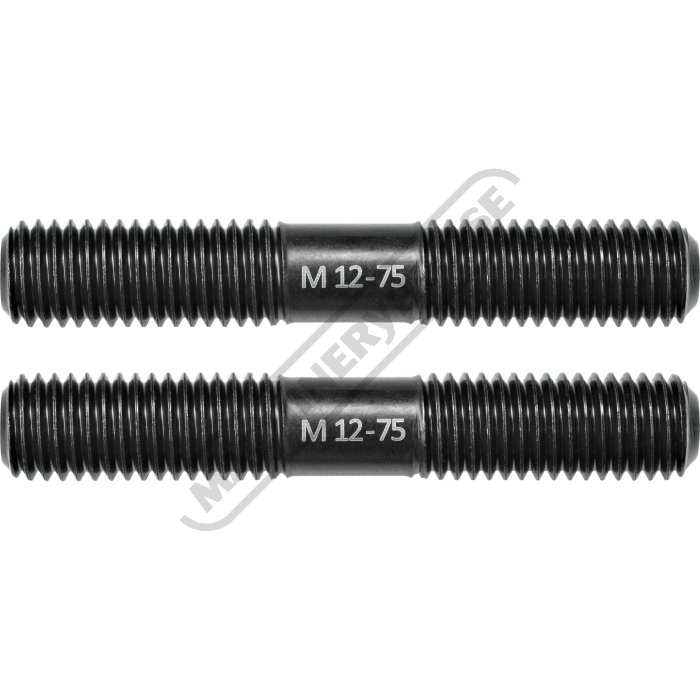

N0893 Double End Threaded Clamp Stud 29 of 29

HAFCO-METALMASTER

Order Code: K8701

Please Call

240V / 15A
1 Year Warranty

Add to Cart

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Related Downloads

Description

GHD-30V Geared Head Drill - QLD Schools / TAFE

31.5mm Drilling Capacity with Automatic Feed & Tapping

QLD Contract Item No. 2.3

Features

31.5mm drill capacity with 125mm spindle travel
Geared head drilling machine with low, medium, & high selector
Variable speed from 50-2850rpm with digital display
Automatic start drill function for repetition work
Automatic Power Feed with range of (0.06, 0.09, 0.12mm/rev)
Thread tapping with auto reverse
Digital readout depth gauge mounted on front panel
Adjustable accurate depth setting for increased productivity
Includes: Coolant system, keyless drill chuck & arbor, work light

Safety Features

Emergency stop switch
Interlocked spindle safety guard
Test and tag certificate on 240V lead

OPTIONAL SAFETY ELECTRICS
(D201) - Knee operation emergency stop

Includes

(V143) 160mm Precision drill vice
(C294) 16mm keyless drill chuck
(D443A) 3MT x JT3 Drill chuck arbor
(D420) 2-1MT sleeve
(D422) 3-2MT sleeve
(C086) M12 x 14mm Tee nuts
(N086) M12 Flanged Nuts
(N0893) M12 x 75mm Long Double End Threaded Clamp Stud

Specifications

Compare Product Range

Specifications

ORDER CODE	K8701
QLD DOE Item No.	2.3
MODEL	Schools / TAFE GHD-30V
Bench / Pedestal Type	Pedestal
Duty Type	Industrial-Duty
(mm)Drill Capacity	Ø31.5
(MT)Spindle Taper	3
Threading Capacity	M20
(Yes / No)Auto Feed	Yes
(mm)Spindle Travel	125
(mm)Throat Depth	285
(mm)Quill Diameter	62
(mm)Column Diameter	115
(mm)Spindle To Table	790
(mm)Spindle To Base	1270
Table Shape	Rectangle
(Yes / No)Micro Switch On Pulley Guard	No
Table Size	426 x 400
Spindle Drive Type	Geared Head
(No.)Spindle Steps	Variable (3 Steps)
(RPM)Spindle Speeds	50 ~ 2850
(kW / hp)Motor Power	2.2 / 3
(V / amp)Voltage / Amperage	240 / 15
(mm)Overall Height	1940
(kg)Nett Weight	344
