16" Thicknesser - HSS Cutterhead - T-406, 240V
Built to School Specifications
NSW DOE Item 16A
K8174
1 of 19
Right Side View
2 of 19
Top View
3 of 19
Rear View
4 of 19
On Off Switch
5 of 19
Key Lockable Isolation Switch
6 of 19
Digital Height Gauge
7 of 19
Height Adjustment Hand Wheel
8 of 19
2 Speed Feed Gearbox
9 of 19
Height Adjustment Lock Handle
10 of 19
Cast Iron Main Table
11 of 19
HSS Blades
12 of 19
HSS Blades Top Adjustments
13 of 19
HSS Blade Setting Guide
14 of 19
Adjustable Stop
15 of 19
Infeed and Outfeed Tables
16 of 19

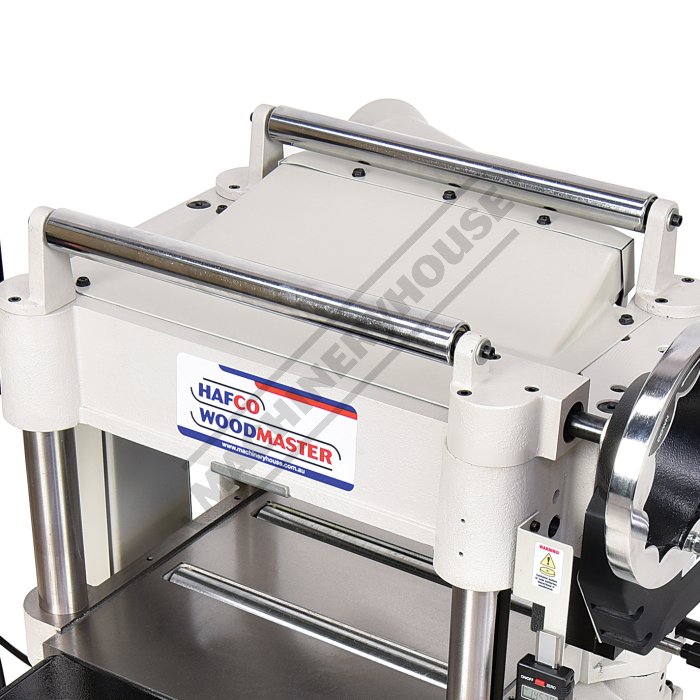

Top Rollers for Returning Material
17 of 19
100mm Dust Outlet
18 of 19
Includes Parts
19 of 19
Order Code: K8174
Please Call
240V / (NO PLUG)
2 Years Warranty
2 Years Warranty
Description
16" Thicknesser - HSS Cutterhead - T-406, 240V
Built to School Specifications
NSW DOE Item 16A
Overview
The Hafco T-406 Thicknesser, features a three-knife cutter head and a timeless, traditional design, making it a staple in all Australian woodworking workshops.
Constructed from robust cast iron, its solid base, feed tables, and cutter head ensure stability and excellent vibration absorption. Exceptional power is provided by a 2.2kW / 3hp 240V induction motor, housed in the base, which drives the cutter block via a twin-pulley V-belt system. Solid cast iron extension tables are fitted at both the front and rear, enhancing timber support, while a digital height gauge ensures precise and accurate adjustments.
Constructed from robust cast iron, its solid base, feed tables, and cutter head ensure stability and excellent vibration absorption. Exceptional power is provided by a 2.2kW / 3hp 240V induction motor, housed in the base, which drives the cutter block via a twin-pulley V-belt system. Solid cast iron extension tables are fitted at both the front and rear, enhancing timber support, while a digital height gauge ensures precise and accurate adjustments.
Features
- 406mm wide x 150mm high timber capacity
- 3 x HSS blades pre-set in cutter head with quick action blade change
- Powerful 2.25kW, 3hp 240V induction motor
- Cutting speed 5000 rpm
- 2 speed (4.8 & 6m/min) feed rollers with pressure adjustment
- Ø100mm (4") dust port for efficient dust extraction
- Easy to read digital height gauge
- Table height locking mechanism secures all four pillars against unwanted movement.
- Heavy duty four post design with protective concertina covers
Safety Features
- Anti kick back fingers
- Cutter head cover with integrated tool-locking mechanism
- Additional guarding installed on both sides of the machine to ensure maximum operator safety.
- DOL starter switch with overload protection and raised red stop button
- Keyed isolation switch - PWD approved
Includes
- Digital Height Gauge
- 3 HSS Blades
- Blade height setting gauge
Compare Product Range
Specifications
| ORDER CODE | K8174 |
|---|---|
| NSW DOE Item No. | 16A |
| MODEL | Schools / TAFE T-406 |
| (mm)Width Capacity | 406 |
| (mm)Height Capacity | 150 |
| HSS Cutter Blades | 3 |
| (kW / hp)Motor Power | 2.25 / 3 |
| (V / amp)Voltage / Amperage | 240 |
| (kg)Nett Weight | 250 |
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
- Compare:
- Wishlist:
- ORDER CODE
- NSW DOE Item No.
- QLD DOE Item No.
- MODEL
- (mm)Width Capacity
- (mm)Height Capacity
- HSS Cutter Blades
- Spiral Cutter Head - Carbide Insert
- (kW / hp)Motor Power
- (V / amp)Voltage / Amperage
- (kg)Nett Weight
- (ex-gst)Pricing
- (inc-gst)
-
-
Compare
-
Wishlist
- K8171
- ~
- ~
- Schools / TAFE T-20
- 508
- 200
- Yes
- ~
- 2.2 / 3
- 240 / 20
- 420
- Please Call
- Please Call
- ADD TO CART
-
-
Compare
-
Wishlist
- K8172
- 16B
- ~
- Schools / TAFE T-20S
- 508
- 200
- ~
- Yes
- 3.75 / 5
- 415
- 420
- Please Call
- Please Call
- ADD TO CART
-
-
Compare
-
Wishlist
- K8174
- 16A
- ~
- Schools / TAFE T-406
- 406
- 150
- 3
- ~
- 2.25 / 3
- 240
- 250
- Please Call
- Please Call
- ADD TO CART
-
-
Compare
-
Wishlist
- K8175
- 16A
- ~
- Schools / TAFE T-406S
- 406
- 150
- ~
- Yes
- 2.25 / 3
- 240
- 250
- Please Call
- Please Call
- ADD TO CART
-
-
Compare
-
Wishlist
- K8177
- 16B
- ~
- Schools / TAFE T-508S
- 508
- 200
- ~
- Yes
- 3.75 / 5
- 415
- 420
- Please Call
- Please Call
- ADD TO CART
-
-
Compare
-
Wishlist
- K8830
- ~
- 11.1
- Schools / TAFE T-380S
- 380
- 150
- ~
- Yes
- 2.2 / 3
- 240 / 15
- 230
- Please Call
- Please Call
- ADD TO CART
-
-
Compare
-
Wishlist
- K8833
- ~
- 11.2
- Schools / TAFE T-20S
- 508
- 200
- ~
- Yes
- 3.75 / 5
- 415
- 420
- Please Call
- Please Call
- ADD TO CART
