50 Tonne Workshop Hydraulic Press with Guarding - HPF-50
Built to School Specifications
NSW DOE Item 27
K8412
1 of 10
Side
2 of 10

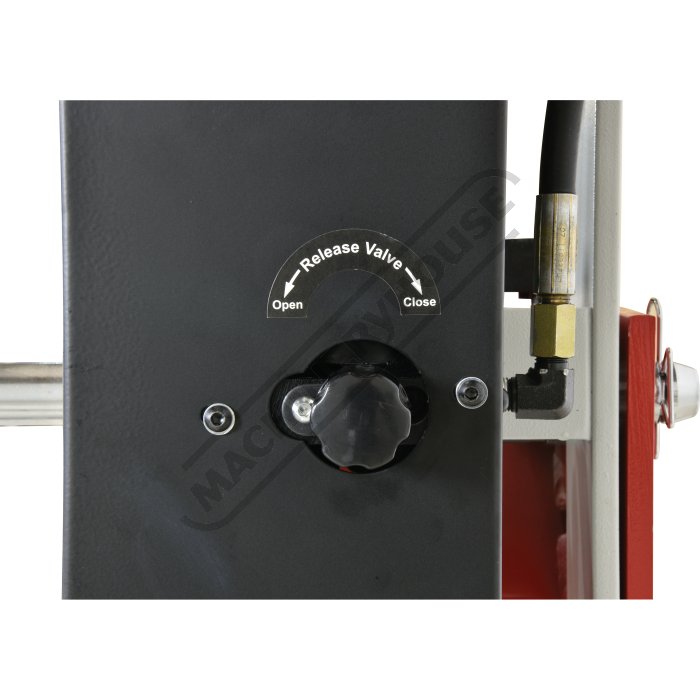

Realease valve for hydraulic pump
3 of 10
Safety Guard Quick Release
4 of 10

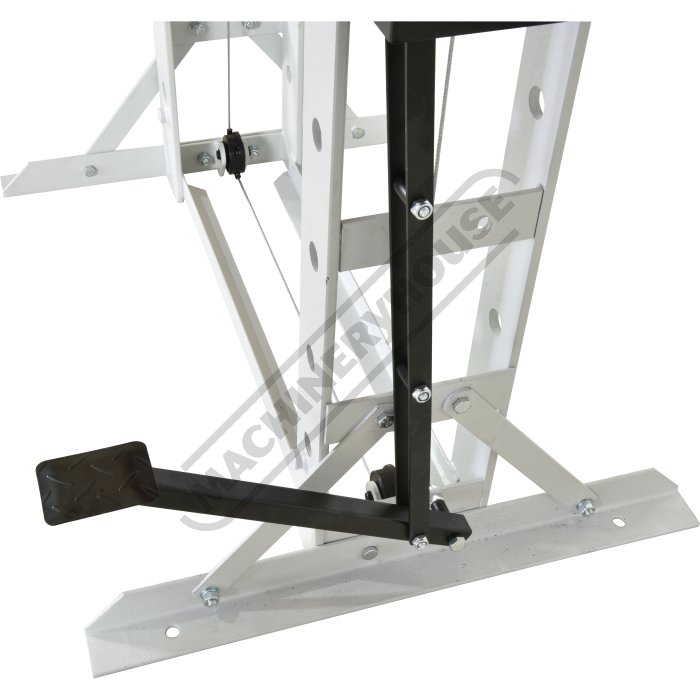

Foot pedal for hydraulic pump
5 of 10
Table Winch Height Adjustment
6 of 10
Metric imperial pressure gauge
7 of 10
Dual Purpose Pressing Blocks
8 of 10
Horizontal Sliding Ram
9 of 10
Includes Removable Protective Ram Cap
10 of 10
Order Code: K8412
Description
50 Tonne Workshop Hydraulic Press with Guarding - HPF-50
Built to School Specifications
NSW DOE Item 27
Overview
The Metalmaster HPF-50 50 tonne trade press is a versatile tool designed for a variety of applications, including the removal and installation of bushes, ball joints, bearings, gears, pulleys, and more. It features a convenient hand or foot-operated pump, allowing the operator to keep both hands on the workpiece while using the foot pump for ease of operation. Additionally, the hydraulic pump is equipped with an auto 2-stage hydraulic pump for a rapid advance and a slower working pressure.
Features
- Ideal for removing and installing - Bushing, Ball-joints, Bearings, Gears, Pulleys, etc
- Foot or hand operated pump
- Heavy duty steel construction with robotic fully welded frame
- Auto 2-stage hydraulic pump for a rapid advance and a slower working pressure
- Hydraulics assembled in a temperature controlled clean room for maximum quality
- Hydraulics individually factory tested prior to shipping.
- Adjustable sliding head up to 240mm travel between the vertical post
- Table height adjusting winch included
- Metric / imperial pressure gauge included
Safety Features
- Front and rear safety guarding that is manually adjustable in height to allow access for your workpiece.
Includes
- Complete with vee blocks
- Front and rear safety guarding
Compare Product Range
Specifications
| ORDER CODE | K8412 |
|---|---|
| NSW DOE Item No. | 27 |
| MODEL | School / TAFE HPF-50 |
| (Tonne)Capacity | 50 |
| (Yes / No)Sliding Ram | Yes |
| (mm)Width Between Front Posts | 730 |
| (mm)Width Between Side Posts | 205 |
| (mm)Ram To Table (Max.) | 1050 |
| (mm)Cylinder Stroke | 200 |
| (mm)Ram Diameter | Ø75 |
| (mm)Piston Diameter | Ø100 |
| (mm)Floor Space (W x D x H) | 1360 x 800 x 1900 |
| (kg)Nett Weight | 340 |
