HM-47B Mill Drill Machine with Digital Readout - Includes Tooling Package - QLD Schools / TAFE

Table Travel: (X) - 540mm (Y) - 205mm (Z) - 385mm

K8741D 1 of 32

Swivel Head 45 Degrees Left or Right 2 of 32

45 Degrees To Right 3 of 32

Mill Head Close Up 4 of 32

Front View 5 of 32

Left View 6 of 32

Digital Readout System 7 of 32

Spindle Speed Controls 8 of 32

Control Panel 9 of 32

Quill Depth Stop Guage 10 of 32

Digital Readout on Quill Depth 11 of 32

Quill Feed Handle 12 of 32

Fine Quill Feed Hand Wheel 13 of 32

Tilting Head Scale 14 of 32

Milling Cutter 15 of 32

Swivel Safety Guard 16 of 32

Large Ground Work Table with T Slots 17 of 32

Table Limit Switches 18 of 32

Table Feed Hand Wheel 19 of 32

Rack and Pinion Wind Up Head 20 of 32

2HP 240V Motor 21 of 32

Main Switch 22 of 32

Speed Chart 23 of 32

C292 Industrial Drill Chuck 0.3 13mm 24 of 32

C922B 6 20mm Collet Chuck Set 25 of 32

C0965 Workshop Series Clamp Kit 58 piece 26 of 32

L066 KYOCERA Carbide Inserts Milling 10 Inserts 27 of 32

M512 Face Mill 90 Positive Rake 75mm 28 of 32

M563 FMB27 20 Face Mill Arbor 29 of 32

M3301 Metric HSS Slot Drill End Mill Set 30 of 32

D442 2MTxJT6 Drill Chuck Arbor 31 of 32

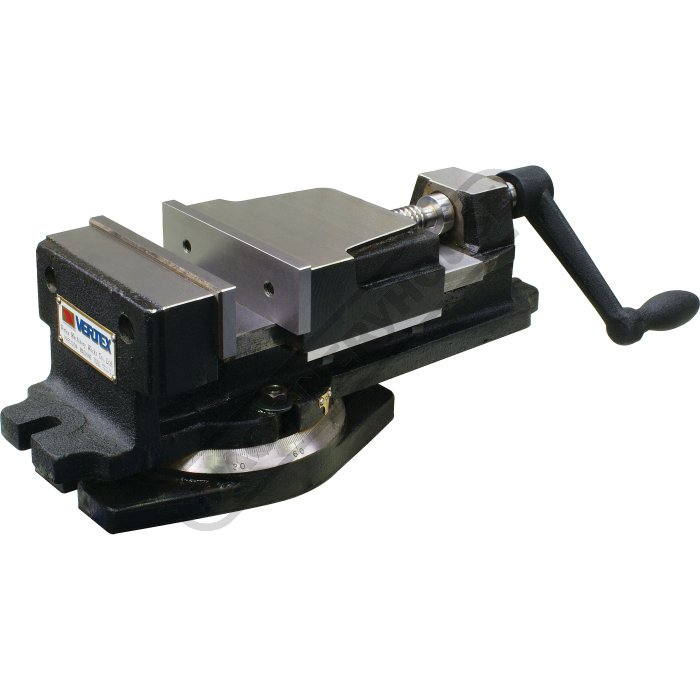

V105 Vertex K Type Milling Vice 127mm Jaw Width 32 of 32

HAFCO-METALMASTER

Order Code: K8741D

Please Call

240V / 10A
1 Year Warranty

Add to Cart

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Related Downloads

Description

HM-47B Mill Drill Machine with Digital Readout - Includes Tooling Package - QLD Schools / TAFE

Table Travel: (X) - 540mm (Y) - 205mm (Z) - 385mm

Features

800 x 240mm ground work table with T-slots
3-Axis digital readout counter fitted with 2-Axis X & Y scales only
Dovetail column on Z-Axis with rack and pinion wind-up head
Powerful 2HP-240V gear driven head suitable for drilling,
milling & tapping functions
3MT spindle with forward and reverse controls
Manual quill feed with fine feed and adjustable depth stop
Digital depth display with zero reset for quill
Mill head tilts up to 90º left or 45º right
Digital display bevel box to set head tilting
Dovetail guideways to X, Y & Z- Axis
Steel fabricated stand with coolant & swarf tray

Safety Features

Emergency stop switch
Interlocked spindle safety guard

Includes

Heavy-Duty Steel Stand
Halogen Lamp
Coolant System
Digital Bevel Box
Slideway Covers
Drill Chuck & Arbor
3MT x 2MT Adaptor
Face Mill Cutter & Arbor
Spindle Guard with Micro
1/2" x 12TPI Drawbar
M12 x 1.75mm Drawbar
(C0965) Workshop Series - Clamp Kit 58 piece
(C292) Industrial Drill Chuck - Ø0.3 - Ø13mm
(C922B) Ø6 - Ø20mm Collet & Chuck Set - 8 Piece
(D442) 2MT x JT6 Drill Chuck Arbor
(L066) KYOCERA Carbide Inserts - Milling- 10 Inserts
(M3301) Metric HSS Slot Drill & End Mill Set - 10 Piece
(M563) FMB27-20 - Face Mill Arbor
(M512) Face Mill 90º - Positive Rake - Ø75mm
(V105) Vertex K-Type Milling Vice - 127mm Jaw Width

Specifications

Compare Product Range

Specifications

ORDER CODE	K8742D
MODEL	Schools / TAFE HM-47B with Digital Readout
Digital Readout	3-Axis DRO
(mm)Drilling Capacity	31.5
(mm)End Milling Capacity	28
(mm)Face Milling Capacity	80
Spindle Taper	3MT
(mm)Quill Travel / Diameter	120 / 75
(mm)Spindle to Table	480
Type of Slides	Dovetail
(mm)Table Size	800 x 240
(mm)T-Slot	14
(mm)Longitudinal Travel (X-Axis)	540*
(mm)Cross Travel (Y-Axis)	205*
(mm)Vertical Travel (Z-Axis)	385
(kg)Work Table Load Capacity	55
Swivel Head (Left - Right)	±90º
(mm/rev)Quill Feed Rate/Rev	Manual
(No. / rpm)Spindle Speeds (Vertical)	6 (95 - 1650)
(kW / hp)Motor Power (Vertical)	1.5 / 2
(V / amp)Motor Voltage	240 / 10
(kg)Nett Weight	430
