High Precision 3 Jaw Self Centring Lathe Chuck - KD-8-12
Ø306mm
D1-8 Camlock Mount
C7031
1 of 5
Jaw
2 of 5
Jaw Rear View
3 of 5
Parts
4 of 5
Rear View
5 of 5
On Sale
Order Code: C7031
ex-gst
inc-gst
$
2,350.00
$
2,585.00
$
2,150.00
$
2,365.00
Description
High Precision 3 Jaw Self Centring Lathe Chuck - KD-8-12
Ø306mm
D1-8 Camlock Mount
Overview
Auto Strong are one of the world’s leading manufacturers of lathe chucks. The KD Series, camlock direct mounting chucks are manufactured in Taiwan with a high precision gripping accuracy of 0.03mm and with a Meehanite casting body they are suitable for high-speed applications.
Features
- 3 Jaw self centering lathe chuck
- D1-8 Camlock direct mount
- High precision gripping accuracy of 0.03mm (0.0012”) T.I.R
- 2 Piece hard jaws could be used as internal jaws and external jaws
- Meehanite chuck body suitable for high speed (Max. 1800rpm)
- Optional bolt on soft jaws are available, Order Code: C7022
Compare Product Range

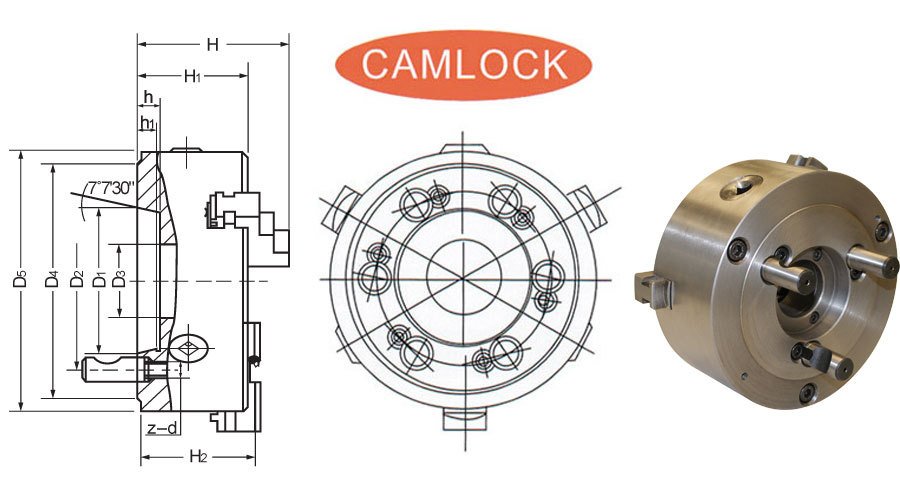

Specifications
| ORDER CODE | C7031 |
|---|---|
| (mm)Chuck Size | Ø306 |
| Camlock | D1-8 |
| (mm)Outside Jaw | 15-300 |
| (mm)Inside Jaw | 90-290 |
| (rpm)Speed | 1800 |
| (mm)D1 | 139.719 |
| (mm)D3 | 103 |
| (mm)H | 165.3 |
| (mm)H1 | 107.5 |
| (mm)h | 18 |
| (kg)Nett Weight | 47 |
- Compare:
- Wishlist:
- ORDER CODE
- (mm)Chuck Size
- Camlock
- (mm)Outside Jaw
- (mm)Inside Jaw
- (rpm)Speed
- (mm)D1
- (mm)D2
- (mm)D3
- (mm)H
- (mm)H1
- (mm)h
- (kg)Nett Weight
- (ex-gst)Pricing
- (inc-gst)
- On Sale
-
Compare
-
Wishlist
- C260
- Ø160
- D1-4
- 3 - 55
- 55 - 145
- 2500
- 130
- 142
- 40
- 95
- 65
- 5
- 9
- $226.36
- $249.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C7064
- Ø160
- D1-4
- 3 - 64
- 50 - 160
- 3000
- 63.52
- 82.6
- 42
- 105.5
- 81.5
- 13
- 10
- $540.00
- $594.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C262
- Ø200
- D1-4
- 4 - 85
- 65 - 200
- 2000
- 63.52
- 180
- 50
- 109
- 75
- 5
- 18
- $308.18
- $339.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C2625
- Ø200
- D1-5
- 4 - 85
- 65 - 200
- 2000
- 165
- 104.8
- 50
- 109
- 75
- 5
- 18.5
- $308.18
- $339.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C7025
- Ø200
- D1-4
- 8-180
- 62-170
- 2000
- 63.513
- ~
- 53
- 119.4
- 77.2
- 13
- 18.5
- $990.00
- $1,089.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C7026
- Ø200
- D1-5
- 8-180
- 62-170
- 2000
- 82.563
- ~
- 55
- 119.4
- 77.2
- 16
- 18
- $990.00
- $1,089.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C7028
- Ø250
- D1-6
- 11-220
- 70-210
- 1800
- 106.375
- ~
- 76
- 136.8
- 86
- 17
- 29.5
- $1,490.00
- $1,639.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C7031
- Ø306
- D1-8
- 15-300
- 90-290
- 1800
- 139.719
- ~
- 103
- 165.3
- 107.5
- 18
- 47
- $2,150.00
- $2,365.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C263
- Ø250
- D1-6
- 6 - 110
- 90 - 250
- 1600
- 106.3
- 133.4
- 80
- 120
- 80
- 5
- 26
- $390.00
- $429.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C264
- Ø250
- D1-8
- 6 - 110
- 90 - 250
- 1600
- 139
- 172
- 80
- 120
- 80
- 5
- 33
- $450.00
- $495.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C269
- Ø315
- D1-8
- 11.5 - 165
- 110 - 320
- 1200
- 260
- 285
- 100
- 136
- 90
- 6
- 60
- $800.00
- $880.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C2695
- Ø400
- D1-8
- 11.5 - 210
- 110 - 400
- 1000
- 139.72
- 171.4
- 130
- 191.5
- 118
- 18
- 81
- $1,150.00
- $1,265.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C270
- Ø400
- D1-11
- 11.5 - 210
- 110 - 400
- 1000
- 196.87
- 235
- 135
- 191.5
- 118
- 18
- 90
- $1,150.00
- $1,265.00
- ADD TO CART
- On Sale - Back In Stock Soon
-
Compare
-
Wishlist
- C2706
- Ø500
- D1-11
- 11.5 - 210
- 150 - 500
- 800
- 196.87
- 235
- 190
- 222
- 135
- 20
- 155
- $1,850.00
- $2,035.00
- ADD TO CART
