Swage-Jennys & Bead Rollers S639

Swage and Jenny - Motorised - SJM-1.2

1.2mm Mild Steel Thickness Capacity
Includes 8 Sets Of Rolls
S639 1 of 15
Right View 2 of 15
Rear View 3 of 15
Head Right View 4 of 15
Left View 5 of 15
Adjustable Material Guide 6 of 15
Adjustable Material Thickness for Rolls 7 of 15
Head Right View 8 of 15
Head Left View 9 of 15
Rolls Left View 10 of 15
Rolls Front View 11 of 15
Control Panel Switches 12 of 15
Motor 13 of 15
Foot Control 14 of 15
Includes 8 Roll Sets 15 of 15
METALMASTER
Discontinued
Order Code: S639
415V / (NO PLUG)
1 Year Warranty
Sorry, this Product is no longer available
Click Here To View All Swage-Jennys & Bead Rollers
Compare
Wishlist
Print
Description
Description

Swage and Jenny - Motorised - SJM-1.2

1.2mm Mild Steel Thickness Capacity
Includes 8 Sets Of Rolls
Features
  • Heavy duty cast iron head
  • Adjustable throat depth guide
  • Gear reduction drive motor
  • Roving foot pedal control with emergency stop
  • Steel stand with storage shelf
  • Mild steel capacity is rated on hot rolled material with 250MPA
Includes

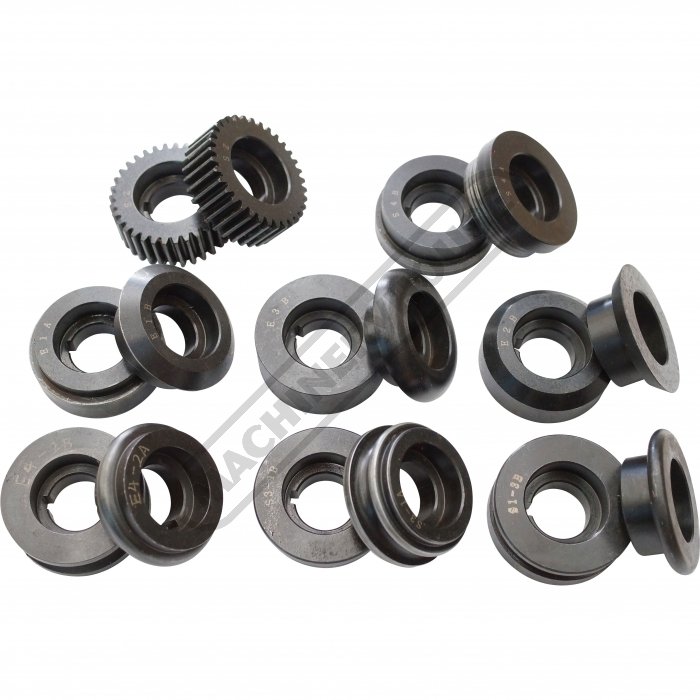

  • 8 sets of rolls:
  • 1 x S1 Swaging
  • 1 x S2 Crimping
  • 1 x S3 Double Bead
  • 1 x S4 Necking
  • 1 x E1 Cutting
  • 1 x E2 Bevel Flange
  • 1 x E3 Right Angle
  • 1 x E4 Wiring
Specifications
Downloads
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • MODEL
  • (Type)Machine
  • (mm / Gauge)Mild Steel - Thickness Capacity
  • (mm / Gauge)Aluminium - Thickness Capacity
  • (mm)Throat Depth Maximum
  • (mm)Throat Height
  • (mm)Roll Diameter
  • (rpm)Output Drive Speed
  • (kW / hp)Motor Power
  • (V / amp)Voltage / Amperage
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • On Sale S641
  • Compare
  • Wishlist
  • S641
  • SJ-24D
  • Bead Roller
  • 1.2 / 18
  • 1.6 / 16
  • 460
  • 20
  • 52
  • ~
  • ~
  • ~
  • 46
  • $271.82
  • $299.00
  • ADD TO CART
  • Package Deal K140
  • Compare
  • Wishlist
  • K140
  • SJ-24DK
  • Bead Roller - Motrised
  • 1.2 / 18
  • 1.6 / 16
  • 460
  • 20
  • 52
  • 0 - 20
  • 0.2 / 0.27
  • 240 / 10
  • 61
  • $690.00
  • $759.00
  • ADD TO CART
  • On Sale S631
  • Compare
  • Wishlist
  • S631
  • MBR-475XT
  • Bead Roller - Motrised
  • 1.2 / 18
  • 1.6 / 16
  • 475
  • 50
  • 52
  • ~
  • 0.25 KW / 0.335
  • 240 / 10
  • 70
  • $817.27
  • $899.00
  • ADD TO CART
  • On Sale S633
  • Compare
  • Wishlist
  • S633
  • MBR-610XT
  • Bead Roller - Motrised
  • 1.2 / 18
  • 1.6 / 16
  • 610
  • 105
  • 70
  • 0 - 18
  • 0.25 / 0.33
  • 240 / 10
  • 115
  • $1,135.45
  • $1,249.00
  • ADD TO CART
  • Package Deal K135
  • Compare
  • Wishlist
  • K135
  • MBR-610XT
  • Bead Roller - Motrised
  • 1.2 / 18
  • 1.6 / 16
  • 610
  • 105
  • 70
  • 0 - 18
  • 0.25 / 0.33
  • 240 / 10
  • 115
  • $1,450.00
  • $1,595.00
  • ADD TO CART
  • On Sale S634
  • Compare
  • Wishlist
  • S634
  • MBR-1070XT
  • Bead Roller - Motrised
  • 1.2 / 18
  • 1.6 / 16
  • 1070
  • 105
  • 70
  • 0 - 18
  • 0.25 / 0.33
  • 240 / 10
  • 150
  • $1,631.82
  • $1,795.00
  • ADD TO CART
  • On Sale - Limited Stock S640
  • Compare
  • Wishlist
  • S640
  • SJ-22
  • Swage & Jenny
  • 0.7 / 22
  • 0.7 / 22
  • 175
  • ~
  • 55
  • ~
  • ~
  • ~
  • 28
  • $390.00
  • $429.00
  • ADD TO CART
  • On Sale S642
  • Compare
  • Wishlist
  • S642
  • IK-1.2
  • Swage & Jenny
  • 1.2 / 18
  • 1.2 / 18
  • 180
  • ~
  • 62
  • ~
  • ~
  • ~
  • 50
  • $990.00
  • $1,089.00
  • ADD TO CART
  • On Sale S521
  • Compare
  • Wishlist
  • S521
  • SJ-2
  • Swage & Jenny
  • 1.6 / 16
  • 1.6 / 16
  • 380 (without guide)
  • ~
  • 60
  • 38
  • ~
  • ~
  • 46
  • $2,790.00
  • $3,069.00
  • ADD TO CART
  • Discontinued S639
  • Compare
  • Wishlist
  • S639
  • SJM-1.2
  • Swage & Jenny - Motrised
  • 1.2 / 18
  • 1.2 / 18
  • 240
  • ~
  • 62
  • 32
  • 0.75 / 1
  • 415
  • 135
  • N/A
  • N/A
  • ENQUIRE
  • Back In Stock Soon S643
  • Compare
  • Wishlist
  • S643
  • IKMP-1.2
  • Swage & Jenny - Motrised
  • 1.2 / 18
  • 1.2 / 18
  • 240
  • ~
  • 62
  • 32
  • 0.75 / 1
  • 415
  • 135
  • $3,790.00
  • $4,169.00
  • ADD TO CART
  • On Sale S644
  • Compare
  • Wishlist
  • S644
  • IBKS-2.5
  • Swage & Jenny - Motrised
  • 2.5 / 12
  • 2.5 / 12
  • 410
  • ~
  • 96
  • 16
  • 1.5 / 2
  • 415
  • 350
  • $6,950.00
  • $7,645.00
  • ADD TO CART
  • On Sale - Special Order S645
  • Compare
  • Wishlist
  • S645
  • IBKS-4.0
  • Swage & Jenny - Motrised
  • 4.0 / 8
  • 4.0 / 8
  • 500
  • ~
  • 126
  • 12
  • 2.2 / 3
  • 415
  • 500
  • $8,990.00
  • $9,889.00
  • ADD TO CART
